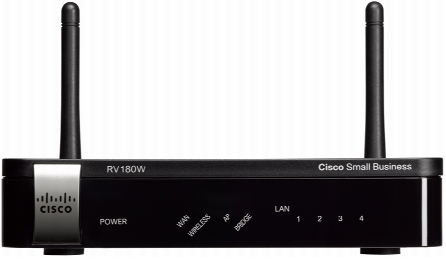

Маршрутизатор CiscoSB RV180W-E-K9-G5

Цена: 22910 руб

СПЕЦИАЛЬНАЯ ЦЕНА
25200 руб
Вы экономите
- 2290 руб
Артикул: RV180W-E-K9-G5
Производитель:Cisco
Доставка: бесплатно по Москве
Наличие:Под заказ
Wireless-N VPN Firewall (1x GE WAN, 4x GE LAN)


Table 1. Specifications

Specifications

Description

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.11e, 802.11w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)

Ports

LAN, WAN

Switch

Power button (on/off)

Buttons

Reset

Cabling Type

Category 5e or better

LEDs

Power, WPS, WAN, wireless, LAN (ports 1-4), Additional LEDs for multifunction router, access point, bridge on RV180W

Operating System

Linux

Network

Network Protocols

• Dynamic Host Configuration Protocol (DHCP) server
• Point-to-Point Protocol over Ethernet (PPPoE)
• Point-to-Point Tunneling Protocol (PPTP)
• Layer 2 Tunneling Protocol (L2TP)
• DNS proxy
• DHCP relay agent
• IGMP proxy and multicast forwarding
• Rapid Spanning Tree Protocol (RSTP)
• Dynamic Domain Name System (TZO, DynDNS, 3322.org)
• Network Address Translation (NAT), Port Address Translation (PAT)
• One-to-One NAT
• Port management
• Port mirroring
• Software configurable DMZ to any LAN IP address
• Session Initiation Protocol (SIP) Application Layer Gateways (ALG)

LAN

• Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch

WAN

• One (1) 10/100/1000 Mbps Gigabit WAN port

WLAN

• Built-in high-speed 802.11n wireless access point

Routing Protocols

• Static routing
• Dynamic routing
• RIP v1 and v2
• Inter-VLAN routing

Network Address Translation (NAT)

Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol

VLAN Support

Port-based and 802.1Q tag-based VLANs

Number of VLANs

4 active VLANs (3-4096 range)

IPv6

• Dual-stack IPv4 and IPv6
• 6to4 tunneling
• Multicast Listener Discovery (MLD) for IPv6 (RFC2710)
• Stateless address auto-configuration
• DHCPv6 Server for IPv6 Clients on LAN
• DHCP v6 client for WAN connectivity
• Internet Control Message Protocol (ICMP) v6
• Static IPv6 Routing
• Dynamic IPv6 Routing with RIPng

Network Edge (DMZ)

Software configurable to any LAN IP address

Layer 2

802.1Q-based VLANS, 4 active VLANS

Security

Firewall

Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ

DoS Attacks Prevented:

SYN Flood Detect Rate (max/sec)

Echo Storm (ping pkts/sec)

ICMP Flood (ICMP pkts/sec)

Block UDP Flood

Block TCP Flood

Block Java, Cookies, Active-C, HTTP Proxy

Access Control

IP access control lists; MAC-based wireless access control

Content Filtering

Static URL blocking or keyword blocking

Secure Management

HTTPS, username/password complexity

WPS

Wi-Fi Protected Setup

Certificate Management

Self-signed SSL certificate, import/export certificate using Privacy-Enhanced Mail (PEM) format

User Privileges

2 levels of access: admin and guest

VPN

IPsec VPN

10 gateway-to-gateway IPSec tunnels
