Видеосистема Cisco Profile 65 w C60, NPP, PHD 1080p 12x Cam, Touch UI, 3 Mics

Цена: 4774099

Артикул: CTS-P65SC60-K9
Производитель:Cisco
Доставка: от 800 р. по Москве
Наличие:Под заказ

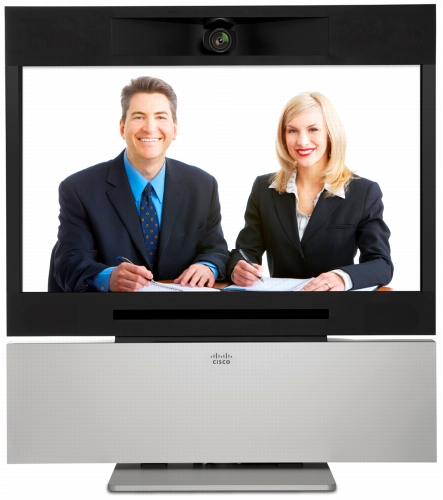

Видеосистема TANDBERG Profile 65" разработана с целью обеспечить наиболее естественную среду общения во время проведения видеовстреч. Благодаря оптимальному расположению камеры и широкому 65-дюймовому ЖК-экрану Profile 65" гарантирует безупречное качество видеосвязи: несмотря на то, что Ваши собеседники находятся в другом офисе, у Вас будет полное ощущение, что все сидят за одним столом.


Table 1. Cisco TelePresence System Profile 65-inch Feature Summary

Feature Summary

Design features

• Exclusive Scandinavian design with a clean and sleek look from all angles
• High definition up to 1080p with large 65-inch custom LCD screen
• Ideal for corner offices, high-end conference rooms, and the showroom floor
• Use of recyclable aluminum materials to support our commitment to the environment
• Ease of use with the Cisco Telepresence touch screen user interface

Application features

• Four-way 720p30 HD embedded MultiSite with Individual Transcoding, H.323/SIP
• Clear and smooth HD collaboration with WUXGA and full 1080p HD with superior motion handling
• One button to push (OBTP) to start a meeting

Performance features

• Choice of network up to 6 Mbps point-to-point (H.323/SIP) and up to 10 Mbps MultiSite* (H.323/SIP)
• Optimal definition - resolutions up to full 1080p and support 60 fps up to 720p
• Four XLR audio input with individual echo canceller
• Five Video Input/Output
• Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)

Flexible Options

The system offers three base options: A stand-alone option with a foot attachment or a wall-mount kit for a smaller footprint.

Product Capabilities

Table 2 lists the product capability specifications for the Cisco TelePresence System Profile 65-inch.

Table 2. Product Specifications

Specification

Description

Unit delivered complete with:

• Full HD LCD display, Cisco TelePresence Codec C60,Cisco Telepresence touch screen UI, remote control, Cisco TelePresence Precision HD Camera (1080p), microphone, Digital Audio Module, and integrated speakers and integrated cabling

Monitor

• 65-inch Full HD LCD, 16:9 and 1080 x 1920 resolution

Base

• Floor standing footplate
• Wall mount on pedestal

Bandwidth

• H.323/SIP up to 6 Mbps point-to-point
• H.323/SIP up to 10 Mbps Multisite*

Firewall traversal

• Cisco® TelePresence Expressway technology
• H.460.18 and H.460.19 Firewall Traversal

Video standards

• H.261, H.263, H.263+, and H.264

Video features

• Native 16:9 Widescreen
• Advanced screen layouts
• Intelligent video management
• Local auto layout

Video input (five inputs)

Two HDMI Inputs: Supported Formats:

• 1920x1080@60 and 59.94 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1920x1080@30 and 29.97 Hz (1080p30)
• 1920x1080@25 Hz (1080p25)
• 1920x1080@24 and 23.97 Hz (1080p24)
• 1280x720@60 and 59.94 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 720x480@60 and 59.94 Hz (480p60)
• 640x480@60 Hz (480p60)
• 1600x1200@50 and 60 Hz (UXGA)
• 1280x1024@60 and 75 Hz (SXGA)
• 1024x768@60, 70, 75, and 85 Hz (XGA)
• 800x600@56, 60, 72, 75, and 85 Hz (SVGA)
• 1920x1200@50 and 60 Hz (WUXGA)
• 1680x1050@60 Hz (WSXGA+)
• 1440x900@60 Hz (WXGA+)
• 1280x768@60 Hz (WXGA)

Two DVI-I Inputs: Supported Formats:

Analog (VGA):

• 1920x1080@60 Hz (1080p)
• 1280x720@60 Hz (720p)
• 1600x1200@60 Hz (UXGA)
• 1280x1024@60 and 75 Hz (SXGA)
• 1280x960@60 Hz
• 1024x768@60, 70, 75, and 85 Hz (XGA)
• 1920x1200@50 Hz (WUXGA)
• 1680x1050@60 Hz (WSXGA+)
• 1440x900@60 Hz (WXGA+)
• 1280x800@60 Hz (WXGA)
• 1280x768@60 Hz (WXGA)

Analog (YPbPr):

• 1920x1080@60 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1920x1080@30 Hz (1080p30)
• 1920x1080@25 Hz (1080p25)
• 1280x720@60 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 1280x720@30 Hz (720p30)
• 720x576@50 Hz (576p50)
• 720x480@60 Hz (w480p60)

Digital (DVI-D):

• 1920x1080@60 and 59.94 Hz (1080p60)
• 1920x1080@50 Hz (1080p50)
• 1920x1080@30 and 29.97 Hz (1080p30)
• 1920x1080@25 Hz (1080p25)
• 1920x1080@24 and 23.97 Hz (1080p24)
• 1280x720@60 and 59.94 Hz (720p60)
• 1280x720@50 Hz (720p50)
• 720x480@60 and 59.94 Hz (480p60)
• 640x480@60 Hz (480p60)
• 1600x1200@50 and 60 Hz (UXGA)
• 1280x1024@60 and 75 Hz (SXGA)
• 1024x768@60, 70, 75, and 85 Hz (XGA)
• 800x600@56, 60, 72, 75, and 85 Hz (SVGA)
• 1920x1200@50 and 60 Hz (WUXGA)
• 1680x1050@60 Hz (WSXGA+)
• 1440x900@60 Hz (WXGA+)
• 1280x768@60 Hz (WXGA)
• One S-video/Composite input (BNC Connectors):
• PAL/NTSC
• Extended Display Identification Data (EDID)

Video output (three outputs)

One HDMI Output: Supported Formats:

• 1920x1080@60 Hz (1080p60)
• 1280x720@60 Hz (720p60)
• 1600x1200@60 Hz (UXGA)
• 1280x1024@60 Hz (SXGA)
• 1024x768@60 Hz (XGA)
• 800x600@60 Hz (SVGA)
• 640x480@60 Hz (VGA)
• 1920x1200@60 Hz (WUXGA)
• 1366x768@60 Hz
• 1360x768@60 Hz
• 1280x768@60 Hz (WXGA)

One DVI-I Output: Supported Formats:

• 1920x1080@60 Hz (1080p60)
• 1280x720@60 Hz (720p60)
• 1600x1200@60 Hz (UXGA)
• 1280x1024@60 Hz (SXGA)
• 1024x768@60 Hz (XGA)
• 800x600@60 Hz (SVGA)
• 640x480@60 Hz (VGA)
• 1920x1200@60 Hz (WUXGA)
• 1366x768@60 Hz
• 1360x768@60 Hz
• 1280x768@60 Hz (WXGA)

One Composite Output (BNC Connector):

• PAL/NTSC
• Extended Display Identification Data (EDID)

Live video resolutions (encode and decode)

• 176x144@30 Hz (QCIF)
• 352x288@30 Hz (CIF)
• 512x288@30 Hz (w288p)
• 576x448@30 Hz (448p)
• 768x448@30 Hz (w448p)
• 704x576@30 Hz (4CIF)
• 1024x576@30 Hz (w576p)
• 640x480@30 Hz (VGA)
• 800x600@30 Hz (SVGA)
• 1024x768@30 Hz (XGA)
• 1280x1024@30 Hz (SXGA)
• 1280x720@30 Hz (720p30)
• 1920x1080@30 Hz (1080p30)
• 1280x768@30 Hz (WXGA)
• 1440x900@30 Hz (WXGA+)
• 1680x1050@30 Hz (WSXGA+)
• 1600x1200@30 Hz (UXGA)
• 512x288@60 Hz (w288p60)
• 768x448@60 Hz (w448p60)
• 1024x576@60 Hz (w576p60)
• 1280x720@30, 60 fps (720p60)
• 720p30 from 768kbps
• 720p60 from 1152kbps
• 1080p30 from 1472kbps

Audio standards

• G.711, G.722, G.722.1, 64 bit & 128 bit MPEG4 AAC-LD, AAC-LD Stereo

Audio features

• CD-Quality 20KHz Mono and Stereo
• Four separate acoustic echo cancellers
• Four-port Audio mixer
• Automatic Gain Control (AGC)
• Automatic noise reduction
• Active lip synchronization
• A LD (Assistive Listening Devices) support with acoustic echo cancellation

Audio inputs (seven inputs)

• Four microphones, 48V phantom powered, XLR connector: each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
• Two RCA/Phono, Line Level: Stereo PC input, configurable to 2 x RCA/Phono, Line Level: Mono auxiliary/DVD input
• One HDMI, digital: Stereo PC/DVD inputs

Audio outputs (three outputs)

• Two RCA/Phono, line level, stereo main audio, configurable to S/PDIF or 2 x RCA/Phono, line level, and mono to recording device
• One HDMI, digital, and stereo main audio

Dual stream

• H.239 (H.323) dual stream
• BFCP (SIP) dual stream
• Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution

Multisite features (embedded MultiPoint)

• Four-way 720p30 High Definition SIP/H.323 MultiSite
• Full individual audio and video transcoding
• Individual layouts in MultiSite CP (Takes out SelfView)
• H.323/SIP/VoIP in the same conference
• Best Impression (Automatic CP Layouts)
• H.264, Encryption, Dual Stream from any site
• IP Down speeding
• Dial-in and dial-out
• Additional telephone call (no license required)
• Conference rates up to 10 Mbps

Protocols

• H.323
• SIP

Embedded encryption

• H.323/SIP point-to-point
• Standards-based: H.235 v2 & v3 and AES
• Automatic key generation and exchange
• Supported in Dual Stream

IP Network features

• DNS lookup for service configuration
