Высокопроизводительная платформа для аудио- и видеоконференцсвязи Media Services Engine (MSE) – мощное, отказоустойчивое устройство, идеально подходит для широкомасштабной коммуникации крупных предприятий и сервис-провайдеров, нуждающихся в доступном, высококачественном, масштабируемом решении.
|
КОНСТРУКТИВНЫЕ ОСОБЕННОСТИ
• 10 слотов расширения с функцией «горячей» замены
• Проведение конференций высокой четкости, запись, функции шлюза
• Резервные блоки питания и вентиляторов с функцией «горячей» замены
• Сдвоенный 48-вольтовый блок питания
• Активный контроль параметров окружения
• Высокоскоростная системная шина
• Плата Supervisor для мониторинга и конфигурирования системы
• Соответствие стандартам безопасности ФУНКЦИОНАЛЬНЫЕ ОСОБЕННОСТИ
• Комплексные и взаимозаменяемые функциональные возможности, в том числе медиа-плата, плата записи и плата шлюза (gateway)
• Расширяет возможности крупных сервиспровайдеров, позволяя им реализовать на одном устройстве сервис полнофункциональной видеоконференцсвязи, записи, ISDN-шлюза, а также предоставляя встроенную систему управления и конфигурирования
• Интеграция с TANDBERG Management Suite (TMS) ПОДДЕРЖИВАЕМЫЕ ВОЗМОЖНОСТИ*
• Многоточечная связь HD 1080p: до 180 портов
• Многоточечная связь SD: до 720 портов
• Интерфейсы PRI ISDN: до 72
• Порты для записи: до 90
• Вызовы IP GW: до 360
• Telepresence Server: до 144 окон
• Пропускная способность видеоконференции – более 1Гб/с
• Широкий выбор поддерживаемых протоколов, в том числе H.323, SIP и H.320
• Устройство основано на стандартах, совместимо с терминалами всех основных производителей
• Поддержка TANDBERG Multiway™
Table 1. Cisco TelePresence MSE 8000 Feature Summary
|
Feature
|
Benefit
|
|
Design features
|
• Ten hot-swappable option slots
• High-definition (HD) conferencing, recording, and gateway capabilities
• Redundant and hot-swappable fan trays and power supplies
• Dual 48-volt power option
• Active environmental monitoring
• High-speed backplane to create multiple multiblade multipoint control units (MCUs) and telepresence servers
• Supervisor blade for system management and configuration
• Extensive approvals and compliance
|
|
Application features
|
• Offers multiple and interchangeable functions, including media, recording, and gateway blades
• Extends the capabilities of large service providers by providing feature-rich conferencing, recording, and ISDN gateway, as well as system management and configuration in an all-in-one device
• Integrated with Cisco TelePresence Management Suite
|
|
Support capabilities*
|
• Up to 180 ports of HD 1080p multipoint
• Up to 720 ports of standard-definition (SD) multipoint
• Up to 72 ISDN Primary Rate Interface (PRI) instances
• Up to 144 serial ports in a single chassis
• Up to 90 recording ports
• Up to 360 IP gateway calls
• Up to 144 Cisco TelePresence screens
• More than 1 Gbps of conferencing bandwidth
• Wide range of protocols supported, including H.323, Session Initiation Protocol (SIP), and H.320
• Advanced Encryption Standard (AES) encryption
• Standards-based and compatible with all major vendors' endpoints
• Support for Cisco TelePresence Multiway technology
|
* Optional feature blades required
Table 2. Cisco TelePresence MSE 8000 Components
|
System Components
|
Description
|
|

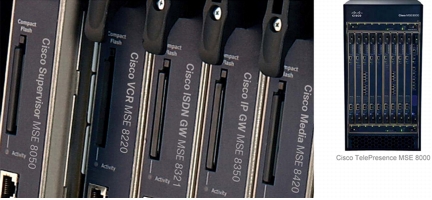

Cisco TelePresence MSE 8000
|
• 10-slot media services engine chassis with high-speed backplane
|
|
Cisco TelePresence MSE 8010 fan tray
|
• Hot-swap fan tray (for use in both top and bottom slots) with environmental monitoring
|
|
Cisco TelePresence AC Power Option
|
• Dual redundant 100-240 VAC power supply shelves
• NIC power shelf management module units
• 1-kW AC/DC rectifier modules
|
|
Cisco TelePresence Supervisor MSE 8050
|
• Supervisor blade, required for system management and configuration
|
Licensing
Software licenses are required in the Cisco TelePresence MSE 8000 chassis to enable the functions of individual blades. Refer to Table 3 for details.
Table 3. Cisco TelePresence MSE 8000 Software License
|
Chassis Software Licenses
|
Description
|
|
TelePresence Server (TS) screen license
|
• Required in Cisco TelePresence MSE 8000 chassis to enable one TelePresence screen when allocated to the Cisco TelePresence Server MSE 8710
|
|
MCU (Media) port license
|
• Four required in Cisco TelePresence MSE 8000 chassis to enable one Full HD 1080p30 video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8510
• Two required in Cisco TelePresence MSE 8000 chassis to enable one HD 720p30 video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable one SD w448p30 video port and no additional audio ports when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable two nHD w360p30 video ports and no additional audio ports when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable one SD video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8420
|
|
IP GW port license
|
• Required in Cisco TelePresence MSE 8000 chassis to enable two IP GW calls of which one can be transcoded when allocated to the Cisco TelePresence IP GW MSE 8350
|
|
PRI port license
|
• Required in Cisco TelePresence MSE 8000 chassis to enable one ISDN PRI port when allocated to the Cisco TelePresence ISDN GW MSE 8321
|
|
Serial port license
|
• Required in Cisco TelePresence MSE 8000 chassis to enable one Serial GW port when allocated to the Cisco TelePresence Serial GW MSE 8330
|
|
Recording port license
|
• Required in Cisco TelePresence MSE 8000 chassis to enable one recording port when allocated to the Cisco TelePresence VCR MSE 8220
|
Product Specifications
Table 4 lists the product specifications for the Cisco TelePresence MSE 8000.
Table 4. Product Specifications
|
Feature
|
Specification
|
|
Product compatibility
|
• Standards-based and compatible with all major vendors' endpoints
|
|
Software licenses
|
• The port licensing model offers added flexibility.
• Port licenses are purchased for the Cisco TelePresence MSE 8000 to enable screen and port functions.
• Port licenses are stored in the chassis, and the Cisco TelePresence Supervisor MSE 8050 can allocate licenses to slots.
• Optional feature blades must be inserted into slots to use software licenses.
|
|
Chassis
|
• Fault-tolerant, high-availability chassis
• Ten hot-swappable option slots
• Redundant power inputs and hot-swappable fan trays
• Dual independent 48-volt DC power inputs
• Active environmental monitoring
• High-speed backplane and management bus
|
|
AC power supply
|
• Two independent AC power shelves convert power for the two DC power inputs of the chassis
• Each shelf has multiple redundant hot-swap rectifier modules
• Each rectifier has its own independent AC inlet
|
|
Cisco TelePresence Supervisor MSE 8050
|
• Actively monitors and manages the chassis and blades
• Hot-swappable without affecting feature blade operation
• Configures blades and monitors the status of blades, fans, air filters, power feeds, and AC power supply shelves
• Alert generation
• Standard telco alarm connector
• Management through built-in web server
• RS-232 for local control and diagnostics
• Strong password policy
• Syslog for diagnostics
• Configuration backup over network
• Secure upgrades through Ethernet or CompactFlash
• Supports Simple Network Management Protocol (SNMP)
• Audit log
|
|
Optional feature blades
|
• The following feature blades can be slotted into a powered Cisco TelePresence MSE 8000 chassis:
• Cisco TelePresence Server MSE 8710: Up to 16 screens of HD telepresence conferencing
• Cisco TelePresence MCU MSE 8510: Up to 20 ports of HD video plus 20 ports of voice multipoint conferencing, or up to 80 ports of SD video multipoint conferencing
• Cisco TelePresence MCU MSE 8420: Up to 40 ports of SD video plus 40 ports of voice multipoint conferencing
• Cisco TelePresence IP GW MSE 8350: Up to 20 transcoding and 20 nontranscoding video calls
• Cisco TelePresence ISDN GW MSE 8321: Up to 8 E1 or T1 ISDN primary rate interfaces
• Cisco TelePresence Serial GW MSE 8330: Up to 16 serial ports
• Cisco TelePresence VCR MSE 8220: Up to 10 ports of video recording with streaming server
Note: Refer to individual data sheets for detailed description of blades.
|
|
Language
|
• English as standard; alternative language packs can be loaded onto the system
|
|
Physical dimensions (H x W x D)
|
• Physical dimensions: 33.25 x 17.2 x 20.5 in. (842 x 437 x 520 mm) (19 rack units [19RU])
• 19-in. rack-mountable (kit supplied)
|
|
Weight
|
• 110 lbs (50 kg)
|
|
Power
|
• -48 VDC, 100-240 VAC 50/60 Hz
|
|
Environmental data
|
• Operating temperature: (0 to 35°C) ambient
• Relative humidity below 95% (noncondensing)
|
|
Approvals and compliance
|
• European safety: EN 60950-1
• USA/Canada safety: UL 60950-1
• CB, CE
• EMC: EN55022 class A, ETS EN300 386, EN61000-3-2
• EN61000-3-3, EN55024: EN61000-4-2,-3,-4,-5,-6,-11
• FCC Part 15 class A, VCCI class A, AS/NZS 3548
• CCC - GB4943, GB9254
• YD/T993
• Telecoms:
• USA: 47 CFR Part 68,
• Canada: IC CS-03, Issue 9, Part VI
• Europe: ETS 300 046-3, TBR 4
• Japan: Ordinance of MPT No 31
• Australia - S038
• China: NAL
• RoHS compliant
|
