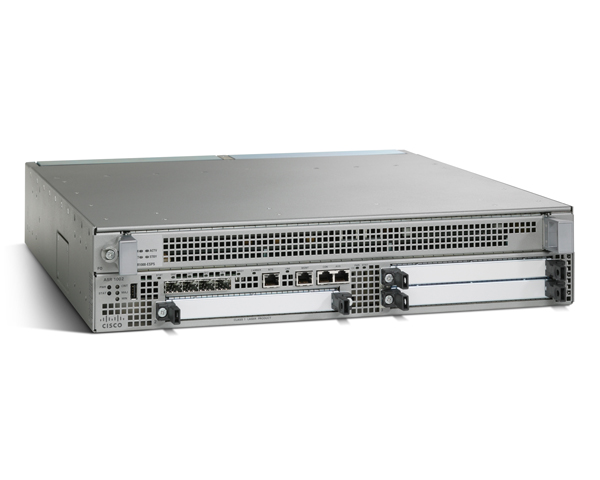

The Cisco ASR 1002 Router in a 2-rack unit (RU) form factor comes with an integrated route and serial interface processors. It houses three shared port adapter (SPA) slots supporting single height and dual height SPAs. Configurable with either the 5 Gbps or 10 Gbps embedded services processor and four built-in gigabit Ethernet ports, it is an ideal solution for a large branch office or as a managed high-speed customer premises equipment (CPE) device to support enhanced features such as security, deep packet inspection, and firewall.
Cisco ASR 1000 Series 5-Gbps ESP Module Performance and Scaling
Feature
Specification
Performance
Up to 7.5 Mpps
Variable forwarding performance, depending on features configured
4 Mpps
For the combination of the following commonly used features: IPv4 forwarding, IP Multicast, ACL, QoS, RPF, load balancing, and Sampled NetFlow
Bandwidth
5 Gbps
For the combination of commonly used features later than Firewall or NAT
Shared by all Cisco ASR 1000 Series SPA Interface Processor (ASR1000-SIP10) cards
1.8 Gbps
For plain IPsec encryption
Scaling
Access control
4,000 unique ACLs and 25,000 ACEs per system
Broadband
12,000 sessions and 6,000 L2TP tunnels
IP
500,000 IPv4 or 125,000 IPv6 routes
Multicast: 64,000 routes and 1,000 groups
QoS
Flexible number of queues per interface:
• Up to 64,000 queues
• Three levels of hierarchy
• Two Low Latency Queuing (LLQ) queues per policy, with up to 1,000 policies
8-kbps policing and queuing granularity
<100-microsecond latency for high-priority applications
Real-time traffic
2,000 CRTP sessions
Security
IPsec: 10,000 tunnels (Hardware is capable of 10,000 tunnels; currently supported: 4,000)
Firewall or NAT: 250,000 sessions and 50,000 sessions-per-sec setup rate
Carrier-Grade NAT: 500,000 sessions
Layer 3 VPN (L3VPN)
1,000 VRF instances
GRE
1,000 tunnels
Cisco Unified Border Element (SP Edition)
4,000 sessions (each session represents a complete voice call with 14 SIP messages per call; that is, two call legs on the SBC consisting of two media legs for a bidirectional media flow and seven SIP messages per call leg)
PRODUCT DETAILS
Device Type
Router - with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps
