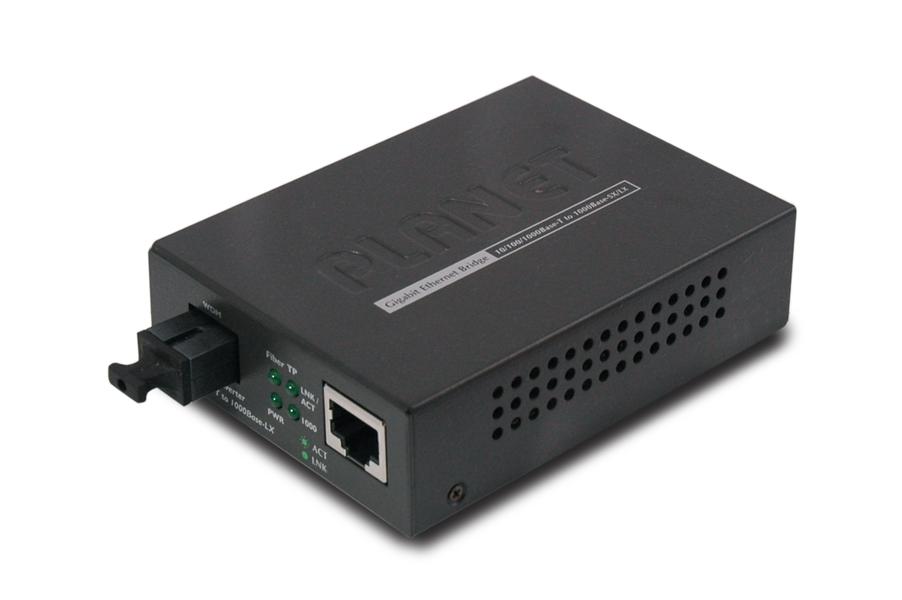

Конвертер Planet GT-806A60

The GT-806A60 offers conversion between the 10/100/1000Base-T and 1000Base-LX/SX networks. The Ethernet signal permits the connection of three segments to connect cost effectively. The GT-806A60 provides communication distance with stable Gigabit performance through a fiber optic cable. The GT-806A features a 10/100/1000Base-T to 1000Base-LX (WDM) Media Converter TX:1310nm~60km.

Enhanced Smart Management Features

The GT-806A60 offers Auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass Through function (LFP). The unit's LLCF/LLR has the ability to alarm administrators issues with the link media and offer prefect solutions to monitor the net. The unit's DIP Switch also provides the disable or enable the LFP function.

Network administrators have the ability to manage the GT-806A60 through OAM TS-1000 terminal features including remote failure indication, loop back test, port status, performance monitoring and troubleshooting.

Simple Installation

The GT-806A60 can be operated as an independent unit or can be included in a media converter chassis, models MC-700, MC-1500, MC-1500R or MC-1500R48. A media chassis can produce power for the GT-806A60 to keep the fiber-optic network at a central location. The unit complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX. Installation is even more efficient for Gigabit media conversion by the unit's plug and play feature.
