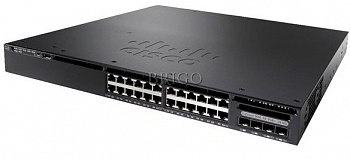

Коммутатор Cisco WS-C3650-24PS-L

Цена: 140531 ₽

Артикул: WS-C3650-24PS-L
Производитель:Cisco
Доставка: от 800 р. по Москве
Наличие:В наличии
Cisco Catalyst 3650 24 Port PoE 4x1G Uplink LAN Base


Технические характеристики

Коммутатор WS-C3650-24PS-L
Device Type Switch - 24 ports - managed - stackable
Enclosure Type Desktop, rack-mountable - 1U
Interfaces Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 390 W
Performance Switching capacity : 88 Gbps Forwarding performance : 65.47 Mpps
Capacity IPv4 routes : 24000 Virtual interfaces (VLANs) : 255 Switched virtual interfaces (SVIs) : 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity Коммутатор WS-C3650-24PS-L
Interfaces 24 x 1000Base-T - RJ-45 - PoE+ - 30 W 1 x USB - Type A 1 x serial (console) - RJ-45 - management 1 x management (Gigabit LAN) - RJ-45 - management 1 x management (mini-USB) - Type B - management 4 x 1000Base-X - SFP - uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power Коммутатор WS-C3650-24PS-L
Power Device Internal power supply - hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 640 Watt
Voltage Required AC 120/230 V ( 50/60 Hz )
Miscellaneous Коммутатор WS-C3650-24PS-L
Rack Mounting Kit Included
MTBF 528,280 hours
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements Коммутатор WS-C3650-24PS-L
Software Included Cisco IOS LAN Base
Dimensions & Weight Коммутатор WS-C3650-24PS-L
Approximate Width 17.5 in
Approximate Depth 17.6 in
Approximate Height 1.7 in
Approximate Weight 16 lbs
Manufacturer Warranty Коммутатор WS-C3650-24PS-L
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - replacement - lifetime - response time: next business day Technical support - phone consulting - 90 days
Environmental Parameters Коммутатор WS-C3650-24PS-L
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 - 96% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
