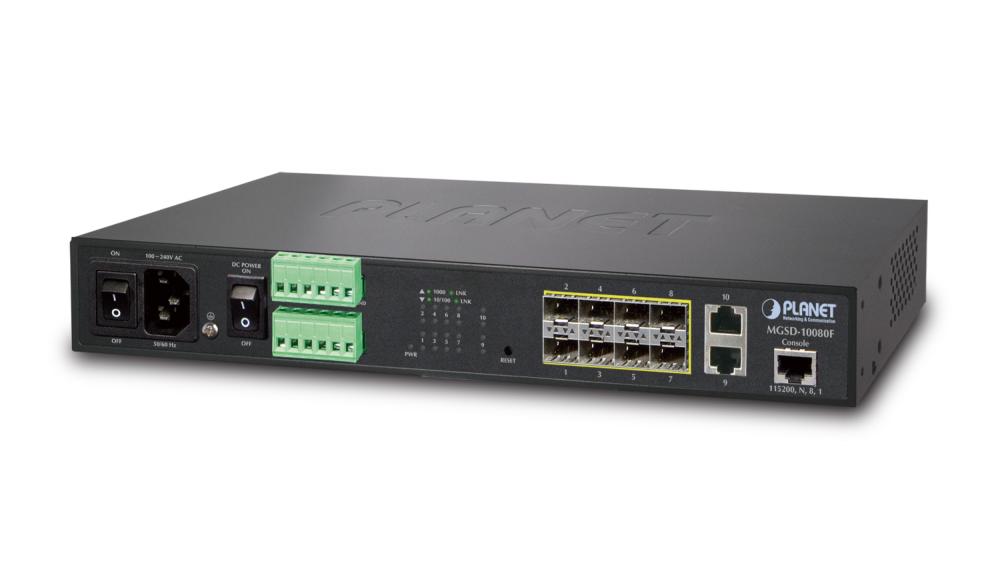

Коммутатор Planet MGSD-10080F

The MGSD-10080F from Planet Technology features enhanced management options and 8 100/1000Mbps dual speed SFP Fiber ports. The unit also features 2 10/100/1000Mbps TP ports and is housed in a durable strong case for even better protection. This unit has the ability to offer non-blocking switch fabric and wire-speed throughput with a maximum of 20Gbps in changing temperature ranges from -10 to 60 degrees Celcius without the loss of packets or CRC errors. This makes the tasks to upgrade the LAN in order to increase bandwidth. The MGSD-10080F is crafted to meet the needs of providers who need to provide long range Ethernet network. The MGSD-10080F features a “Front Access” design, which makes management, installation and wiring even simpler.

Versatile Network Extension Solution

 The MGSD-10080F features 8 mini-GBIC slots which are built into the unit. These slots have the ability to support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Administrators are able to select the right SFP transceiver that matches the distance or transmission speed needed to extend the range of the network. The MGSD-10080F also supports the SFP-DDM (Digital Diagnostic Monitor) function, which features the parameters of the SFP for network administrators. These parameters include optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Continual Operation With AC and DC Redundant Power

The MGSD-10080F features one 100 ~ 240V AC power supply unit and two additional 36 ~ 72V DC power input features connectors for the installation of redundant power supply. These Redundant Power Systems are crafted to meet the demands of high tech facilities that need high power supply. In addition, the unit's 36~ 72V DC power supply can be utilized as a unit the device that can be placed in the electronic room.

 Digital Input and Digital Output for External Alarm

 The MGSD-10080F from Planet Technology has the ability to support on the front panel the Digital Input and Digital Output features. The alarm featured on the exterior of the unit gives technicians the ability to utilize the Digital Input feature to detect, and log the status of external devices (such as door intrusion detector). The alarm can be utilized to notify administrators if the MGSD-10080F experience a port link down, link up or power failure.

Budget Friendly Solution For IPv6 Management

To meet the need for providers to craft IPv6 (Internet Protocol version 6) network infrastructures with ease, the MGSD-10080F from Planet Technology supports both IPv4 and IPv6 functions. The unit operates efficiently with the standard IPv4 network structure and supports the IPv6 network structure. The unit features user friendly management interfaces and various management functions, which makes the switch a ideal selection for providers to craft an innovative IPv6 FTTx edge service and for connection to the IPv6 network.

 Dependable Layer 2 / Layer 4 Switch

 The MGSD-10080F Managed Ethernet Switch is a great choice for applications in enterprises. The unit offers enhanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, and network access control. The unit also features authentication and management security features to enhance the Automation Ethernet network connectivity with a stable recovery ability. This ability allows for networks to craft fault tolerant and mesh network functions.

 Enhanced Security The MGSD-10080F

 from Planet Technology features stable Access Control List (ACL). The unit's security features include port-based 802.1x and MAC-based user and device authentication. The port-security feature is dependable and has the ability to monitor and limit the number of clients that pass through. Administrators have the ability to create highly dependable corporate networks with less time and money.
