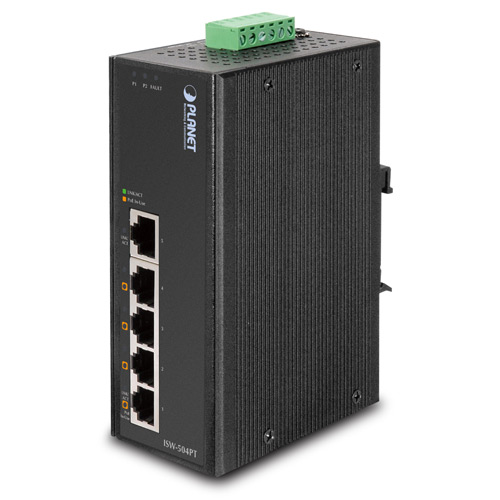

Коммутатор Planet ISW-504PT

Цена: 72585 ₽

Артикул: ISW-504PT
Производитель:Planet
Доставка: от 800 р. по Москве
Наличие:Под заказ
IP30 5-Port/TP POE Industrial Fast Ethernet Switch (-40 to 75 C)


fy;">The ISW-504PT offers high performance switch architecture with 5 10/100Mbps UTP ports. It provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 2K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer.
All of the RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Features


Physical Port

　● 5-Port 10/100Mbps RJ-45 with auto MDI/MDI-X function
　● 4-Port support 48V DC power to PoE Powered Device (Port-1 to Port-4)

IEEE 802.3af PoE

　● Complies with IEEE 802.3af Power over Ethernet End-Span PSE
　● Up to 4 IEEE 802.3af devices powered
　● Supports PoE Power up to 15.4 Watts for each PoE port
　● Auto detect powered device (PD)
　● Circuit protection prevent power interference between ports
　● Remote power feeding up to 100m

Layer 2 Features

　● Supports Auto-Negotiation and 10/100Mbps Half / Full Duplex and Auto MDI/MDI-X
　● High performance Store and Forward architecture, runt / CRC filtering eliminates 　　
　● erroneous packets to optimize the network bandwidth
　● Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame
　● flow control (Full-Duplex)
　● Automatic address learning and address aging
　● Integrated address look-up engine, support 2K absolute MAC addresses
　● CSMA / CD Protocol

Industrial Case / Installation

　● IP-30 Aluminum metal case protection
　● DIN Rail and Wall Mount Design
　● Redundant Power Design
　● 24V or 48V DC, redundant power with polarity reverse protect function
　● Supports EFT protection 6000 VDC for power line
　● Supports 6000 VDC Ethernet ESD protection
　● -40 to 75 Degree C operation temperature

Specifications


Hardware Specification
10/100Base-TX Ports 5
IEEE 802.3af PoE ports 4
Dimension (D x W x H) 135 x 87.8 x 56 mm
Weight 842g
Power LED Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK / ACT
Port 5: LNK / ACT
Power Requirement 24 or 48 VDC input
Redundant power with polarity reverse protection function
Installation DIN Rail kit and Wall Mount ear
Alarm Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment 1/2(+), 3/6(-)
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back Pressure for Half Duplex
IEEE 802.3x Pause Frame for Full Duplex
Switch fabric 1Gbps
Throughput (packet per second) 0.74Mpps@64bytes
Network cables 10/100Base-TX:
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.)
EIA/TIA-568 100-ohm STP (100meters, max.)
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standard Compliance IEEE 802.3：Ethernet
IEEE 802.3u：Fast Ethernet
IEEE 802.3x：Flow Control
IEEE 802.3af：Power over Ethernet
Environment
Temperature Operating: -40~75 Degree C
Storage: -40~85 Degree C
Humidity Operating: 5~90%, Storage: 5~90% (Non-condensing)
