Видеоконференцсвязь Cisco CTI-TCS-5RP-K9
Цена: 2447513 руб
Content Server - 5 Recording Ports, 2 Live Ouput |
Table 1. Cisco TelePresence Content Server Feature Summary
|
Feature
|
Benefit
|
|
Design features
|
• Appliance-based architecture for easy deployment and high reliability
• One rack unit (1RU) rack-mountable
• Built-in, easy-to-use, web-based management interface
• Built-in web-based content library
• Ability to interoperate with a range of complementary multivendor products
|
|
Application features
|
• Live and on-demand streaming
• Scheduled and impromptu call support with dial-in and -out capabilities
• Ability to record and stream video and H.239 dual-stream presentations from any H.323 or Session Initiation Protocol (SIP) video conferencing unit
• Content creation from anywhere using Cisco TelePresence Expressway technology
• Compatibility with all major streaming formats, including Windows Media, Flash, and QuickTime
• Support for major distribution servers and corporate web portals
• Editing and library features for simple content creation and retrieval
• Support for download of content to PC, Mac, and portable media devices
|
|
Performance features
|
• Hosts up to five concurrent calls (up to 10 calls with Additional Five Port Option), up to two of which can be streamed live
• Video-conference bandwidth up to 4 Mbps (with premium Resolution Option)
• Synchronized streaming of video and presentation in live and on-demand modes
• Unicast and multicast streaming support
• Internal and external storage capabilities
• Support for Active Directory authentication through Lightweight Directory Access Protocol (LDAP)
• Call configuration and access rights management
• Ability to cluster up to 10 content servers
• Support for SQL Server 2008 with Content Server clusters
• Ability to export and import recordings from one Content Server to another
|
Table 2. Product Specifications
|
Product compatibility
|
• Support for recording initiation from all standards-based endpoints
|
|
Components
|
• Simplified, common format, complete solution for streaming, all in one component
|
|
Recording
|
• Predefined template-based recording options
• Recording flexibility through a built-in web-based template editor
• Personal and system recording aliases for ultimate flexibility
• Support for automated creation of personal recording aliases
• Ability to record presentations or video from a live dual stream (H.264, H.239, or DuoVideo)
• Support for H.323 endpoints, multipoint control units (MCUs), gateways, and the Session Initiation Protocol (SIP)
• Ability to record up to five simultaneous H.323 or SIP video calls
• Ability to receive calls at up to 4 Mbps, up to 1080p high-definition (HD) resolution for the main camera and for the second input source
• Ability for calls to include main video or audio and H.264, H.239, or DuoVideo
• Transcoding of recorded calls into streaming and downloadable file formats, including Windows Media, Flash, and MPEG4 formats
• Recording of every call directly to disk for "offline" transcoding after the call completes
• Optional record start countdown
• Record PIN-protected MCU Conferences
• Personal sandbox for safe working on recorded content before publishing
• Optional automated email notifications to content owners on completion of recording
• Recording indicator on Cisco TelePresence MCU calls
|
|
Live and on-demand streaming
|
• Ability to live stream up to two calls (of the total five) in a single format and size
• Native Windows Media Streaming Server is embedded
• When integrated with customer-provided Wowza Media Server, the content server streams Flash* content.
• When integrated with customer-provided Apple Quicktime or Darwin Streaming Servers, the content server streams MPEG4 QuickTime content
• Flash and QuickTime Media can be viewed as a progressive download without external streaming servers
• Static URLs for live streaming of MPEG-4 for Flash content from a Wowza Media Server
|
|
Streaming
|
• Live (unicast and multicast)
• On demand (unicast)
• Native support for streaming Microsoft Windows Media through an embedded Windows Media Server
• Support for external streaming servers (Microsoft Windows Media Server, Wowza Media Server, and Apple QuickTime Streaming Server)
|
|
Portable devices
|
• Support for media download, then sync with Apple iPod and MPEG-4 capable devices
|
|
Distribution server
|
• Support for Apple's Podcast Producer
• Support for iTunes U
• Support for Cisco MXE 3500 transformation engine
• Support for Cisco Show and Share
|
|
Content library
|
• Download options
• Really Simple Syndication (RSS) feed subscription to provide alternate access to content library

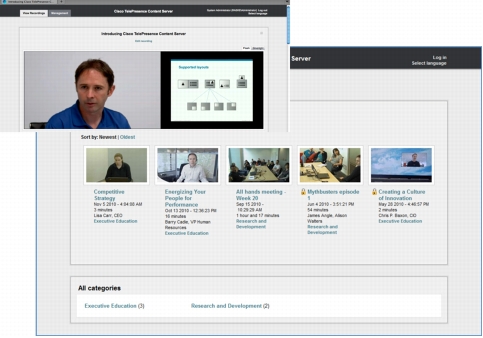

• Searchable content library web interface, with thumbnail images and categories for easy content searching
• Ability to preconfigure recording outputs, media access, metadata
• Ability to share links to recording, allowing you to easily identify and share recordings
• Ability to view live and recorded content through content viewer web interface and telepresence endpoints (PIN Protection available)
• Editable indexes
• Content editor that enables trimming and joining recordings
• Support for major web browsers (Internet Explorer, Mozilla Firefox, and Safari)
• Context-sensitive help in the interface
• Simplified graphical template editor for easy creation of new recording templates
• Automatic and manual bandwidth detection, to provide the best viewing experience for your Internet connection
|
|
Content viewer
|
• An intuitive content viewer supports Windows Media, Adobe Flash, Microsoft Silverlight, and QuickTime plug-ins
• Multiple video layouts are supported, including:
• Switching layout
• Joined layout
• Fixed aspect ratio 16:9 joined layout
• Picture-in-picture video layout
• Stacked layout
• Dual-stream or still-image content is presented fully synchronized with the main video
• Video, audio, and content are fully synchronized
• Pause and seek in recordings
|
|
Storage
|
• Large-capacity internal storage (500-GB hard disk)
• Support for external network storage using network-attached storage (NAS)
|
|
Language support
|
• English, French, Simplified Chinese, and Japanese
|
|
Physical dimensions
(H x W x D)
|
• 1.7 x 16.9 x 20 in. (44 x 430 x 508 mm)
• 19-in. rack-mountable, 1RU height, including rack rails
|
|
Weight
|
• 13.89 lbs (6.30 kg); packaging and accessories weight 6.39 lbs (2.9 kg); total shipping weight 20.28 lbs (9.2 kg)
|
|
Power
|
• 100-240 VAC, 50-60 Hz, 350W maximum
|
|
Environmental data
|
• Operating temperature: 50 to 86ºF (10 to 30ºC)
• Relative humidity: 10 to 90%
• Storage and transport temperature: -4 to 140ºF (20 to 80ºC) (noncondensing)
|
|
Approvals and compliance
|
• CE Declaration to EU Low Voltage Directive 2006/95/EC (Europe - EN60950-1)
• Directive 89/336/EEC (EMC Directive)
• Standard EN 55022, Class A
• Standard EN 55024
• Standard EN 61000-3-2/-3-3
• Approved according to UL 60950-1 and CAN/CSA C22.2 No. 60950-1-03
• Compliance with FCC15B Class A
|
Table 3. Video and Audio Specifications
|
Bandwidth
|
• H.323 and SIP up to 4 Mbps
|
|
Video standards
|
• H.261
• H.263
• H.263+
• H.264
|
|
Live video resolutions
|
• QCIF (176 x 144 pixels)
• CIF (352 x 288 pixels)
• VGA (640 x 480)
• 4CIF (704 x 576)
• SVGA (800 x 600)
• XGA (1024 x 768)
• 448p (576 x 448)
• w288p (512 x 288)
• w448p (768 x 448)
• w576p (1024 x 576)
• 720p (1280 x 720): Supported for H.264 only
|
|
Audio standards
|
• G.711
• G.722
• G.722.1
• AAC-LD
|
|
Frame rates
|
• Up to 60 frames per second (requires premium resolution option)
|
Table 4. Network, Security, and Management Specifications
|
System management and scheduling
|
• Allows for easy configuration using serial port management console
• Allows for total management through embedded web server
• Provides application programming interface (API) for customized integration with third-party solutions
• Allows for one click to record scheduled conferences with Cisco TelePresence Management Suite
• Allows for simple addition of audio-only outputs for recording of scheduled conferences with Microsoft Outlook or IBM Lotus Notes
• Uses Cisco TelePresence Management Suite to monitor Content Server status, such as free disk space
• Allows administrators to set maximum streaming bandwidth limits to fit their network rules
|
|
Network interfaces
|
• Two Ethernet (10/100/1000 Mbps) (one for future use)
|
|
Firewall traversal
|
• Cisco TelePresence Expressway technology
• Auto Network Address Translation (NAT)
• H.460.18
• H.460.19 Firewall Traversal
|
|
Quality of service (QoS)
|
• Dynamic jitter buffering
• Packet-loss concealment
|
|
Security features
|
• Secure management through Secure HTTP (HTTPS)
• Integration with Active Directory through LDAP for access
• Password-protected recordings
• Full access control lists (ACLs) on all content library items
|
Table 5. Ordering Information
|
Product Name
|
Part Number
|
|
Cisco TelePresence Content Server
|
CTI-TCS-5RP-K9
|
|
Ordering Options:
|
|
Clustering Option
|
LIC-TCS-CLUSTER
|
|
Premium Resolution Option
|
LIC-TCS-PRO
|
|
Clustering Option
|
LIC-TCS-CLUSTER
|
|
Additional 5 Port Option
|
LIC-TCS-ADD5RP
|
|
10 Port Premium Resolution Bundle
|
CTI-TCS-PRO10P-K9
|
|
