Model
|

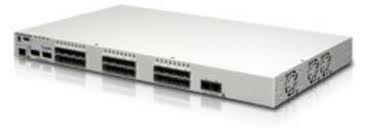

OS-6850E-U24X (Fiber Only switch)
|
Poorten
|
22 x 100/1000 sfp ports
|
Uplink
|
2 x Dual Purpose + 4 x 10 Gbit - Only SFP noded
|
Stackable
|
yes (Max 8 switches per stack)
|
Stacking ring
|
40 Gbit
|
Can stack with earlier Generation
|
Yes
|
Routing Technology
|
(Full routing OSPF, BGP, PIM-SM, DVMRP)
|
Backup Power Option
|
yes (1:1)
|
Power Usage (Max. without PoE)
|
58 W / 117 W
|
Choice of Power supplies
|
120 W DC / 126 W AC / 360 W/ 510 W / 900 W
|
Separate Rack mountable Powersupplies
|
Yes (both direct attached and separate 19" included)
|
Powersupply redundancy and loadsharing
|
Yes
|
802.3at PoE overbooked
|
Yes
|
Performance
|
65,5 / 101,2 Mpps
|
Bandwidth
|
144 / 240 Gbps
|
Max Vlans per switch
|
4094
|
Max switched virtual interfaces / SVI’s
|
4094
|
Max. QOS classification ACE’s
|
2048
|
Max. Security ACE’s
|
2048 / 2048
|
Max. Unicast Mac adresses
|
16000 / 16000
|
802.1X
|
•
|
SNMP v1 / v2
|
•
|
SNMP v3
|
Standard
|
SSH
|
Standard
|
Port Security
|
•
|
802.1q
|
•
|
QoS (802.1p, Tos DSCP)
|
•
|
Rate Limiting
|
•
|
802.3ad (cross stack)
|
•
|
802.1d/w/s
|
•
|
IP v4 / v6
|
• / •
|
Dynamic Routing IPv4 / IPv6
|
Standard
|
IP service level agreement (SLA)
|
Standard (Service assurance Agent)
|
Memory
|
256 MB Ram / 64 MB Flash
|
Multiple VRF (Virtual routing and forwarding)
|
Standard
|
Metro Ethernet Services (NNI / UNI)
|
•
|
Server load balancing
|
•
|
Hardware based Multicast routing
|
IGMP, PIM-SM, PIM-DM, DVMRP
|
Policy based Routing
|
|
