Указанная цена актуальна при заказе от 25 000 руб., при заказе на меньшую сумму, стоимость может измениться в сторону увеличения.

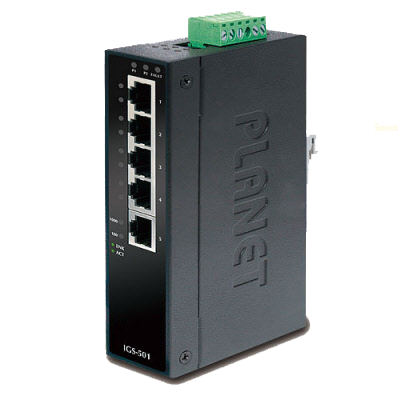

IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C)
Технические характеристики
Описание:
• Physical Port –5-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
• Layer 2 Features
–Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Ethernet standard
–Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
–High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
–Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
–Backplane (Switching Fabric): 10Gbps
–Integrated address look-up engine, support 8K absolute MAC addresses
–136 kilobytes on-chip frame buffer
–9K Jumbo packet size support
–Automatic address learning and address aging
–CSMA/CD Protocol
• Industrial Case / Installation
–IP-30 Metal case / Protection
–DIN Rail and Wall Mount Design
–12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
–Supports EFT protection 6000 VDC for power line
–Supports 6000 VDC Ethernet ESD protection
–-40 to 75 Degree C operation temperature
