Сплиттер Planet IPOE-162S

Цена: 11960 руб

Артикул: IPOE-162S
Производитель:Planet
Доставка: от 800 р. по Москве
Наличие:В наличии

Указанная цена актуальна при заказе от 25 000 руб., при заказе на меньшую сумму, стоимость может измениться в сторону увеличения.

IP30, Industrial 802.3 at High Power PoE Splitter- 12V& 24V (-40 to +75 C)

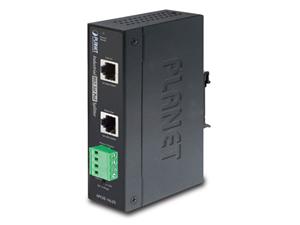

Planet IPOE-162S is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the selectable 12V or 24V DC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the IPOE-162S is designed to work under the operating temperature range from -40 to 75 degrees C (-40 to 167 degrees F). The IPOE-162S is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.


Innovative, Selectable DC Power Output Voltage


Via the innovative 12 volt / 24 volt DIP switch on the front panel, the IPOE-162S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices, such as wireless access point or IP camera. It highly increases the flexibility of the product applications.


Dual Power Output Capability


By supporting up to 25-watt 802.3at Power over Ethernet cable, the IPOE-162S can satisfy not only single power-hungry equipment but also able to share the 25-watt output power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:
■ IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
■ IP camera (Power 1) + Pan & Tilt motor (Power 2)
■ Analog camera (Power 1) + IP video server (Power 2)

Environmentally Hardened Design


With compact, slim type IP30 industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-162S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.
